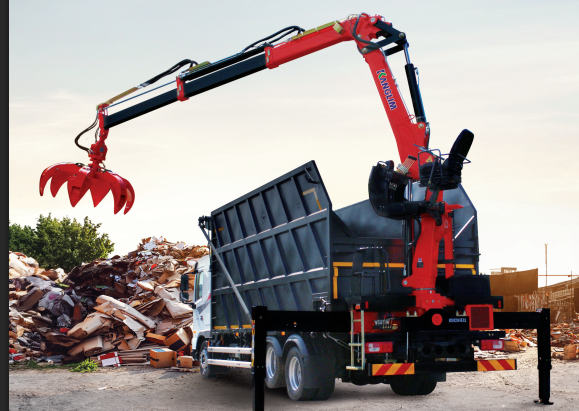

A heavy-duty knuckle boom crane mounted truck is a powerful and highly versatile lifting solution designed for demanding industrial and construction applications. Built with a hydraulically operated articulated (folding) boom, it offers exceptional flexibility, allowing operators to lift, load, and place heavy materials with precision even in confined or hard-to-reach areas. Mounted directly onto a truck chassis, it combines mobility with high lifting capacity, making it ideal for transporting and handling loads such as steel structures, construction materials, machinery, and containers. Its compact folding design enables easy storage and improved road maneuverability, while advanced control systems and safety features ensure efficient and secure operation. This type of crane is widely used in construction, logistics, infrastructure development, and heavy engineering sectors where both strength and adaptability are essential.
| Lifting Capacity(kg/m) |
3,150/3.0
2,540/4.0
2,040/5.0
1,700/6.0
1,450/7.0 -
1,360/7.5 - |
| Max. Working Radius(m) |
7.5 |
| Rated Oil Flow (ℓ/min) |
240 |
| Oil Tank Capacity(ℓ) |
200 |
| Swing Angle |
425 |
| Swing Type |
Rack & Pinion |
| Outrigger |
Extension : Manual Jack : Hydraulic Operating |
| Outrigger Span(m) |
3.8 |
